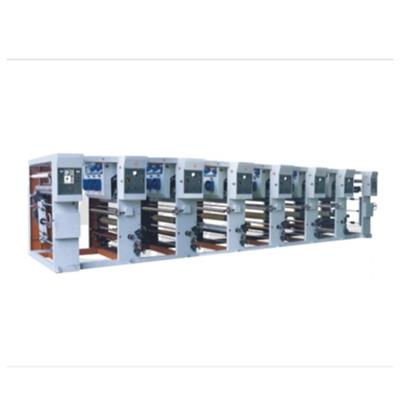

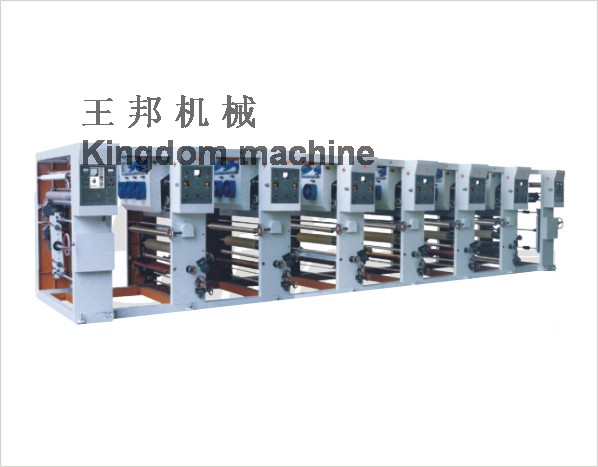

ASY-A600-1000 Gravure Printing Machine



Gravure Printing Machine is suitable in printing has the fine printing performance volume shape plastic film, the adhesive-bonded cloth, PVC, the thin leather, the paper, the aluminum foil and the cloth and so on each kind of processed foods, is the liquor box, the shoes bag, the vest bag ideal printing equipment.

Performance and characteristic:
1) newest advanced version gear box, 360 degrees not engine offs to version installment.
2) The motion type doctor blade installment, the crosswise reciprocation flees moves.
3) The remote infrared ray preheater pipe drying system can maintain does 60 m/min.
4) puts the volume hauling to use the magnetic powder brake to employ according to ability the material to be steadier.
5) receives the volume part, the hauling and the volume takes uses the magnetic powder coupling, the color printing is precise, receives the volume end surface to be neater.
6) The electric current output type temperature control system causes the heating fast province electricity.
7) Turns over the double location to take in and put away the volume organization, realizes does not stop meets refueling.
8) The reverse side one time prints continuously.

Main Technical Variables:

Type
ASY-A600
ASY-A800
ASY-A1000
Printing Width
600mm
800mm
1000mm
Printing Length
240-850mm
240-850mm
240-850mm
Max.Printing Speed
50m/min
50m/min
50m/min
Format Precision(more or less)
0.25mm
0.25mm
0.25mm
Power of main motor
4kw
4kw
4kw
Fan Power
0.19kw/group
0.19kw/group
0.19kw/group
Heating Power
3.2kw
3.2kw
3.2kw
Overall Dimension
8.8*1.2*1.7m
8.8*1.4*1.7m
8.8*1.6*1.7m
