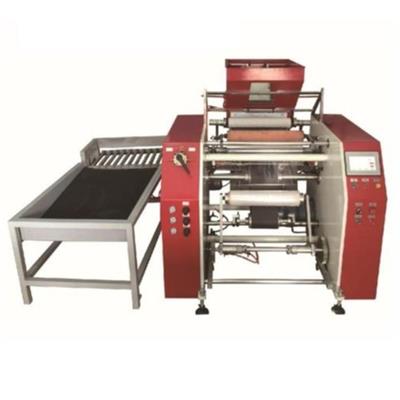

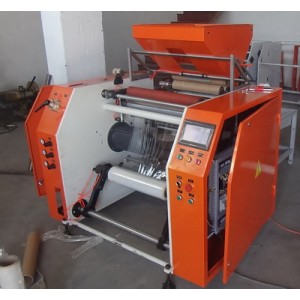

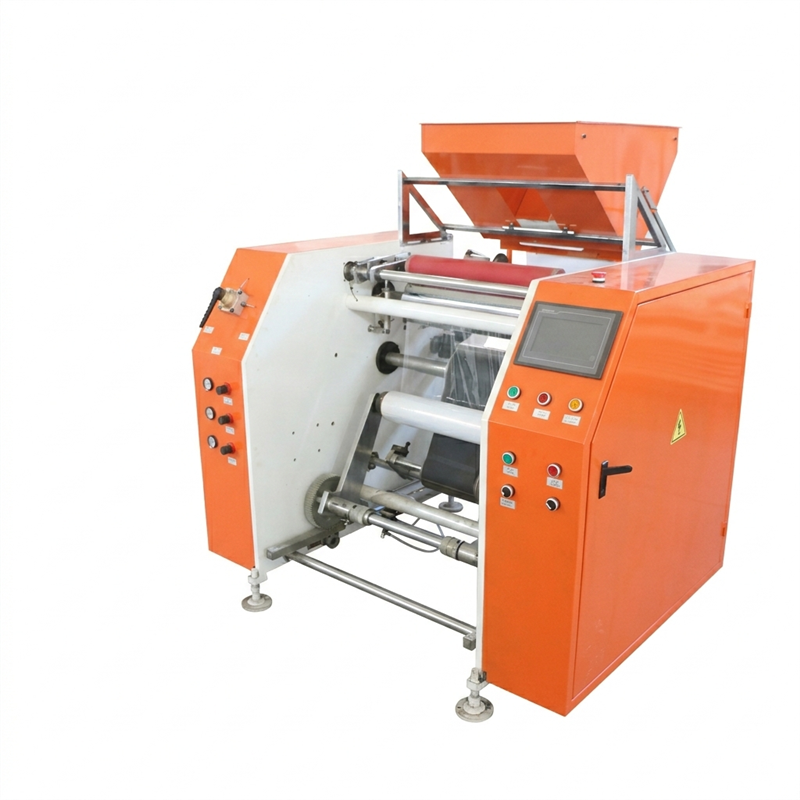

Automatic Cling Film Rewinding Machine








Full automatic machine designed for the repid rewinding of stretch film from jumbo roll into small rolls. The layout and operation make it user friendly and ideal for volume production. A skilled operator is not required.

Both for stretch & cling film rewinding.

1- Auto rewinding max. machine speed at 800 Mts/min

2- High production rate and quick change over

3- Fully automatic cycle with Programmable Logic Controller (PLC) control

4- Paper core to be ordered from 1-3 inch.

5- Free tension rewinding, No stretching occurs while rewinding

6- Guarding and controls CE approved





Model

AKDRW-500

AKDRW-600

AKDRW-700

Film width

280-500mm

280-600mm

300-720mm

Rewinding width

280-500mm

280-600mm

300-720mm

Max. diameter of Jumbo roll

400mm

400mm

400mm

Max. diameter of Rewinded roll

300mm

300mm

300mm

Rewinding speed

900m/min

900m/min

900m/min

Winder exchanging

Automatic

Core size of unwinder

3”

Core size of rewinder

1-3”

Conveyor & stacker

Option device

stretch film
