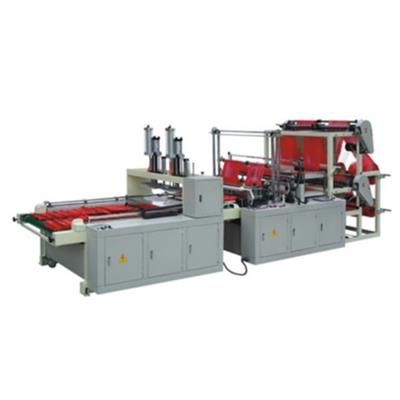

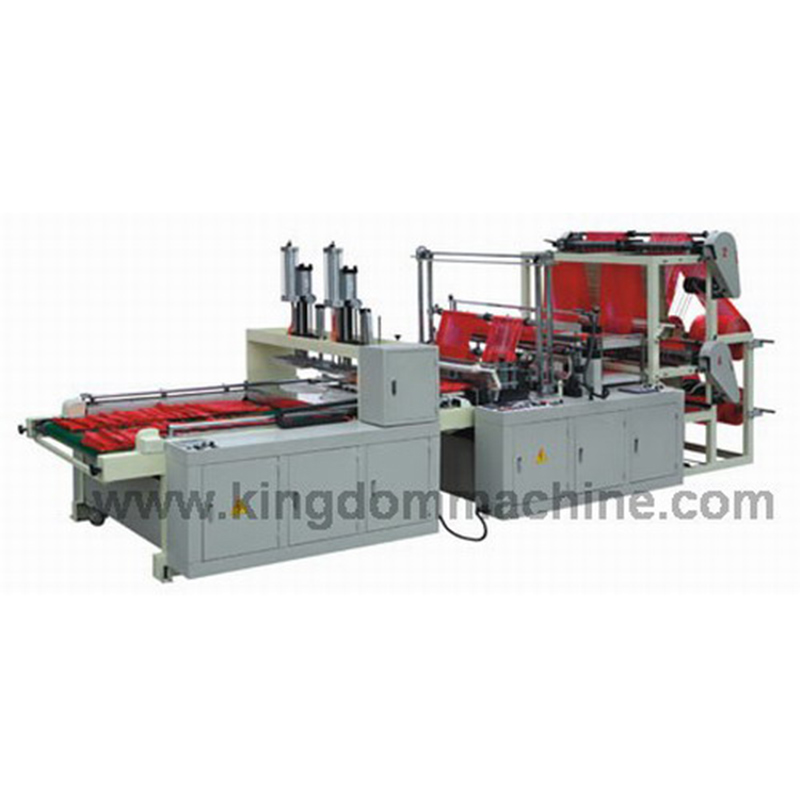

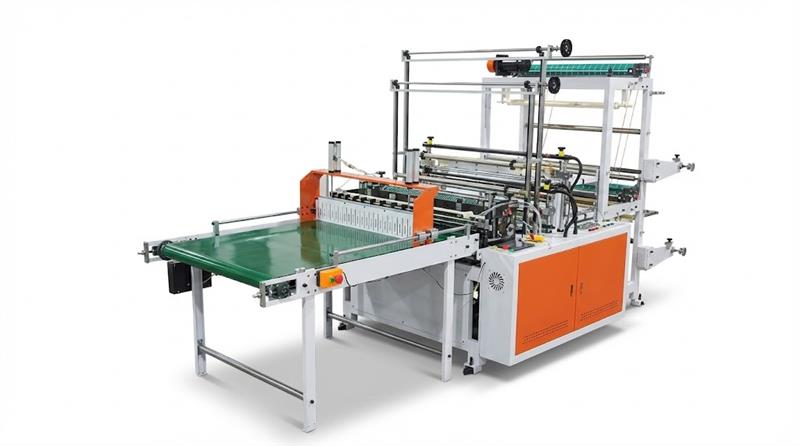

Four lines Bag making Machine

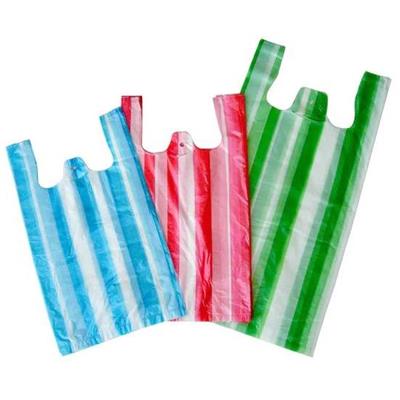

Four lines Bag making Machine is applied to manufacturing and printing the uncolored vest bags made of HDPE, LDPE roll film. It adopts PLC control, double servo(step) motor fixed length and the liquid crystal touch screen actual display to finish the feeding, sealing, cutting, punching holes and transporting only in one process. It is of high degree of automation and good economic result.


Technical Parameter:

Model
SHXJ-E800
SHXJ-E 900
SHXJ-E 1000
Width of Sealing & Cutting
300mm*2
330mm*2
400mm*2
Length of Sealing & Cutting
1200 mm
1400 mm
1600 mm
Speed of Bag-making (pc/min)
(60-120)*4
(60-120)*4
(60-120)*4
Number of Strip (pc)
4
4
4
Power of Motor (kw)
1.5
2.2
3
Weight (kg)
1100
1200
1300
Outline Dimension
3.6*1.5*1.95m
3.7*1.6*2m
3.8*1.8*2.1m
