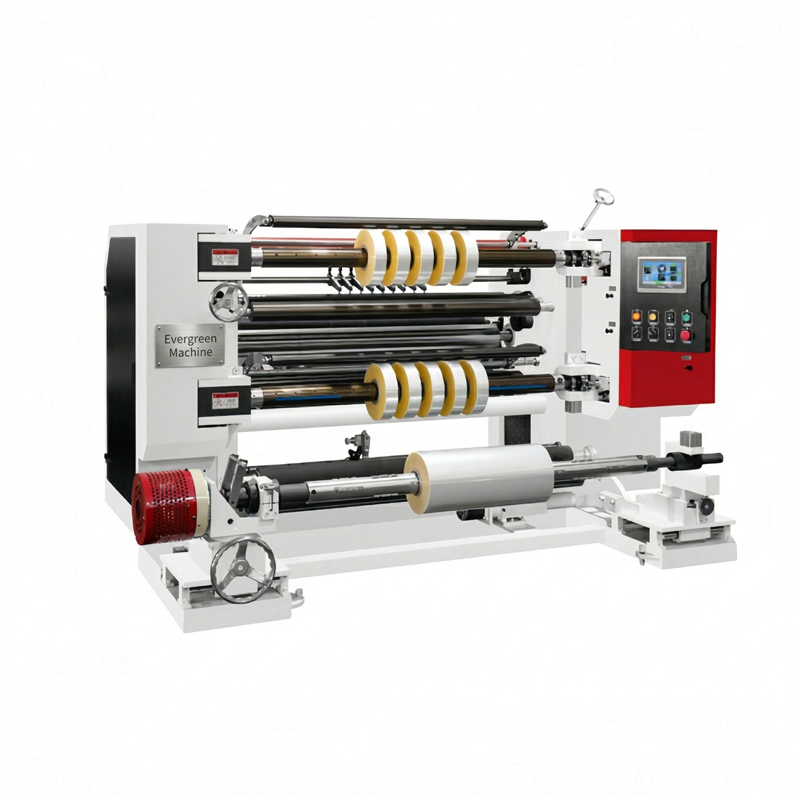

LFQ-A Vertical Slitting and Rewinding Machine




This machine is suitable for slitting and rewinding such various roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil and paper, etc. and can cut edge, separate and cut material according to different requirements during production.

Type LFQ-700A LFQ-1100A LFQ-1300A
Max.Width of Mother Roll 700mm 1100mm 1300mm
MAX.Diameter of Mother Roll Dia600mm Dia600mm Dia600mm
Width of Final Roll 30-600mm 30-600mm 30-600mm
Slitting and Rewinging Speed 5-160m/min 5-160m/min 5-160m/min
Tolerance of EPC more or less 0.5mm 0.5mm 0.5mm
Total Power 2.7kw 3.5kw 3.5kw
Weight of Machine 1200kg 1500kg 1800kg
Overall Dimension 2000*1110*1400mm 2400*1110*1400mm 2600*1110*1400mm
