Paper Drinking Straw Machine






Product Application

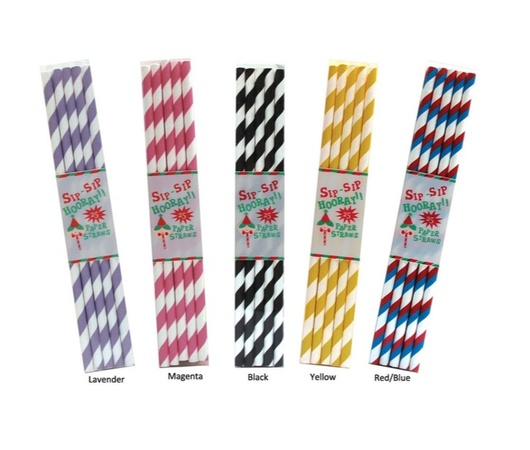

The KDP-1 Series Paper Drinking Straw making machine, is a machine used in the production of all kinds of paper straws, and with up to three colors. These types of straws are disposable and are eco-friendly.
• Numerical and multi-cutting system.
• PLC controlling system with automatic operation.
• Synchronous cutting controlled by a servo motor, meaning that the cutting part of the machine is moving together with the paper tubes, cutting with high precision.
• Adopt with Multi-cutters online cutting system. Paper straws are finished in one step.

   Technical Parameter

paper layer

3~5 layers

Inner Diameter

5~12mm

Wall Thickness

0.3~1mm

Winding Speed

1~45 meters/min

Cutting

Multi blades

Cutting System

Servo motor synchronism tracking cut

Gluing Way

Single/Double sides

Machine Body

Painting or Stainless Steel (optional)

Paper Straw Collecting

Automatic

Operator

1~2 person

Speed Control

By Inverter

Power Supply

380V/3Phase/50Hz

Control System

Main Forming Motor

2*1.0KW Servo Motor

PLC / Touch Screen

Delta/Wecon

Inverter

Delta

Pneumatic Components

AirTac

Electric Components

Schneilde

Bearing

NSK

Servo Motor

Yaskawa/Delta

Screw Rod/slider

HIWIN/CSK

Configuration

Paper Reel Stand & Glue Unit

3 Layers

Belt

2 Pieces

Mandrel Shaft

2 Pieces

Useful Tool

1 Set

Measurement & Weight

Measurement

3500*1500*1200mm

Working Space

7000*5000mm

Weight

1300kgs
