Single Straw Packing Machine KD-31D
Single straw packing machine suit to use printed and unprinted film, paper. it can be
or paper with printed paper & film to packing straight straw,milk tea straw.Configured three
sets of servo motor to realize color calibration packing by PLC & Touch screen & color mark sensor.
You can pack straw length 150~260mm in the same diameter without changing any spare parts.
Can packing many different diameter straws by changing few spare parts. The machine provides a high packing rate.
It not only makes your straw packing operation easier, but also provides you with a high reliability.

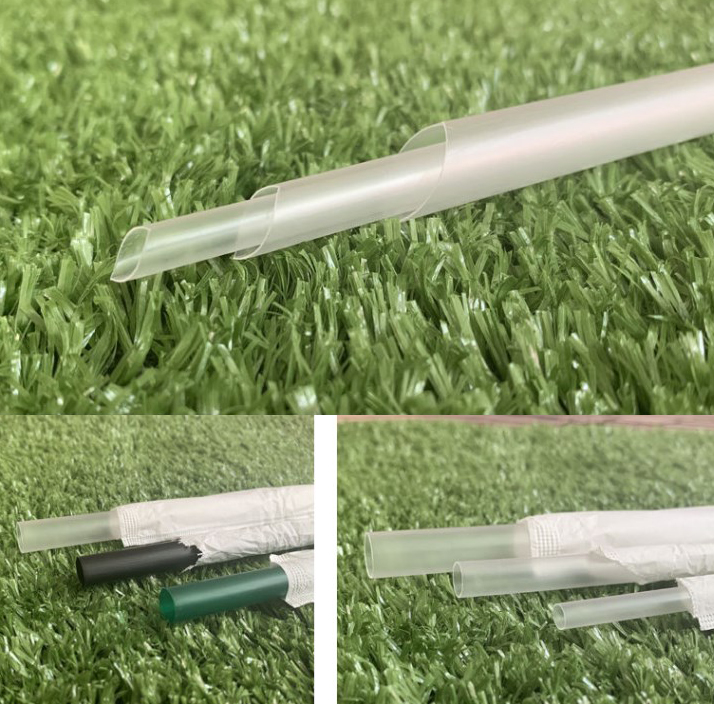

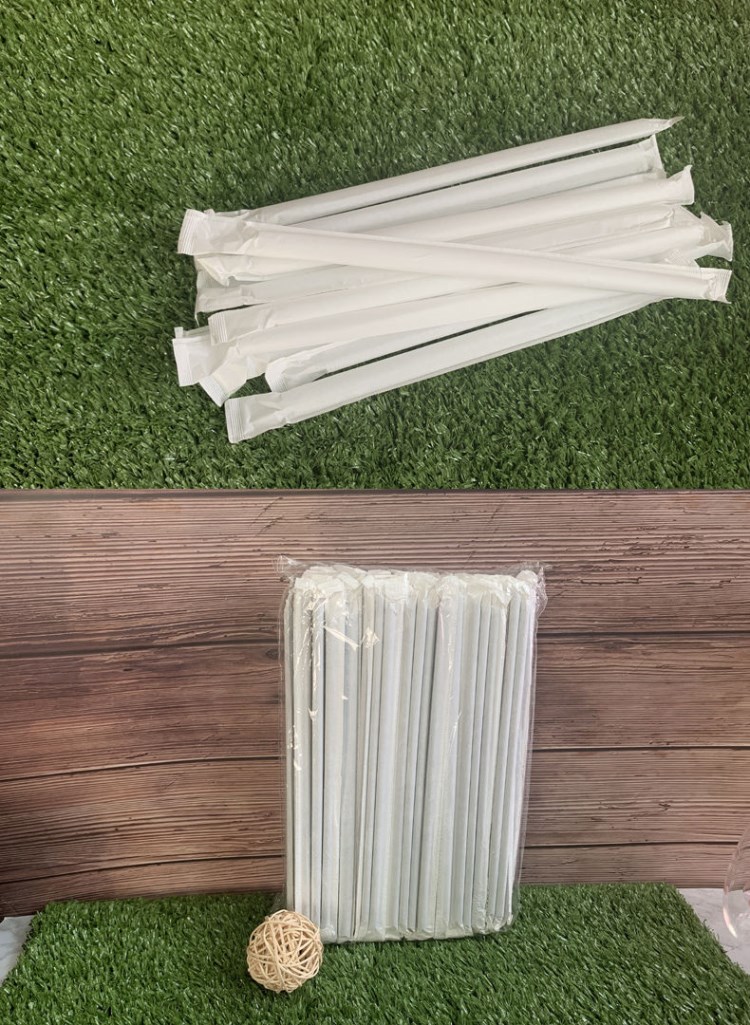

1.Single drinking straw packing,filling,packing, cutting at a time.
2.Automatic product counting and Alarm.
3.Packing length can be adjusted freely by calibration, Paper & Bopp film(or with printing pattern).
4.Can pack straw length 150~260mm in the same diameter without changing any spare parts , Can packing many different diameter straws by changing few spare parts.
6.Use three sets of servo motor system to drive, PLC controlling, Touch -screen can set any data to pack different length straw.
7.High speed color calibration system. accurate position with pattern.
8.Temperature module system to control heating temperature .
9.Stainless steel work table.
|
Capability
|
400∼500pcs/min
|
|
Main cutting motor
|
0.8kW
|
Servo motor
|
|
Main wrapping motor
|
0.4kw
|
Servo motor
|
|
Main pushing motor
|
0.4kw
|
Servo motor
|
|
Hopper motor
|
90W
|
|
Heating power
|
2*200W(use BOPP)
|
|
Wrapping material
|
paper, plastic film
|
|
Width of material
|
paper:25∼33mm;plastic film:25∼60mm
|
|
Automatic counter
|
Have
|
|
Belt conveyor
|
1set
|
|
Touch screen
|
1set
|
|
PLC system
|
1set
|
|
Temperature control module
|
1set
|
|
color calibration system
|
1set
|
|
proximity switch
|
2sets
|
|
Specifications of straw
|
Diameter of straw
|
Φ4∼12mm
|
|
|
Length of straw
|
150∼260mm
|
|
|
Machine weight
|
450KG
|
|
|
Dimension
|
1250mm(W)×1800mm(L)
|
|
Other specifications are customizable
|
|
