Solventless Lamination Machine Advantages:
1)Reliable solventless laminator
2)More capable, more refined, with five roller coating system
3)Rigid shaftless unwind-rewind units
4)Closed loop tension control via dancer roller
5)Computer Controls for all machine functions
6)Exceptional lamination pressure control for remarkable finished product.

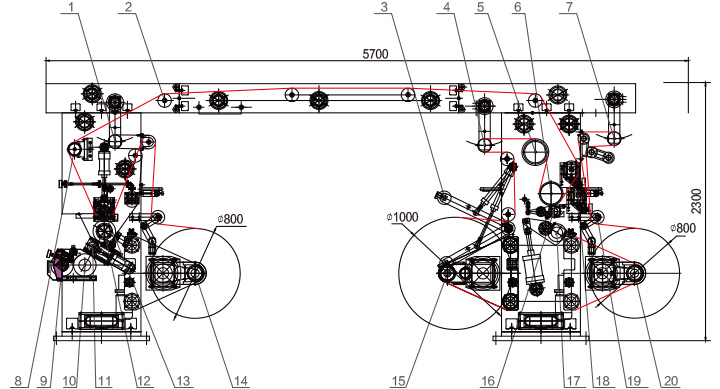

| 1. Tension Swimming Roller 2. Feeding Guide Roller 3. Rewinding Pressure Roller 4. Tension Swimming Roller 5. Cooling Roller 6. Laminating Roller 7. Tension Swimming Roller |
8. Tension Sense Roller 9. Doctor Blade Roller 10. Metering Roller 11. Gluing Roller 12. Coating Roller 13. Coating Pressure Roller 14. The First Unwinding |
15. The Rewinding 16. Laminating Pressure Roller 17. Laminating Back Pressure Roller 18. Adjustable Guide Roller 19. Moving Guide Roller 20. The Second Unwinding |
Technical Parameters：
| Max. Laminating Speed | 350/400m/min |
| Max. Laminating Width | 1050/1250/1350mm |
| The 1st Diameter of Unwinding | Max.Φ800mm |
| The 2nd Diameter of Unwinding | Max.Φ800mm |
| Diameter of Rewinding | Max.Φ1000mm |
| Glue Spread | 1.0~3.0g/m |
| Laminated Film Type | BOPP, OPP, NY, PVC, CPP and etc |
