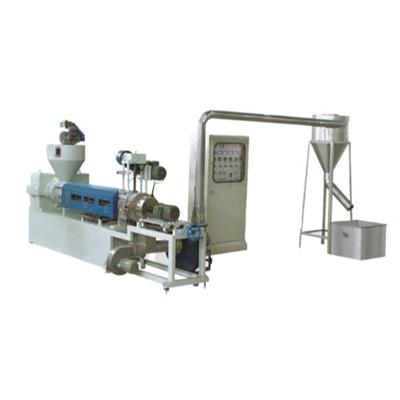

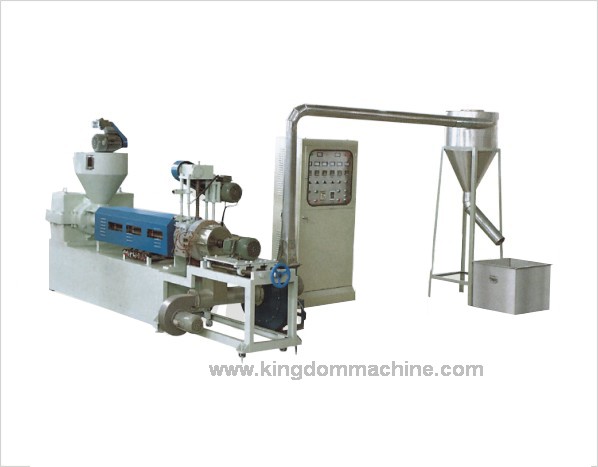

Wind cooling Recycling Compounding Machine






This raw materials like waste films of HDPE and LDPE are extruded through the extruder, and then are cooled through wind and cut hotly into granules, featuring in fine quality, bubble free and moisture free. The machine is equipped with a forced feeder, fast mesh changer and automatic temperature controller.

Main Technical Variables:

Model
KD-A90
KD-A100
KD-A110
KD-A120
Diameter of Screw
90
100
110
120
Major Diameter
Ratio of Screw (L/D)
20:1 -22:1
20:1 -22:1
20:1 -22:1
20:1 -22:1
Rational Speed of Screw
10-100r/min
10-100r/min
10-100r/min
10-100r/min
Main Motor Power
22kw
30kw
37kw
45kw
Output
68kg/h
95kg/h
120kg/h
135kg/h
Weight of overall
2600kg
2800kg
3000kg
3200kg
Over dimensions (m)
4*1.5*1.8
4.2*1.5*1.8.
4.4*1.5*1.8
4.6*1.5*1.8
