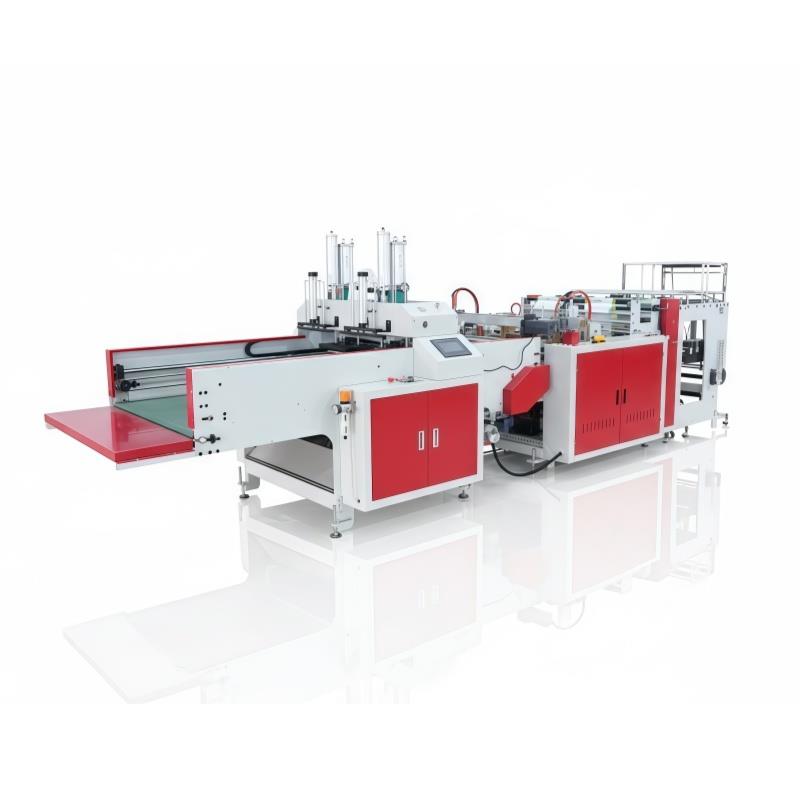

automatic bag making machine








automatic bag making machine is applied to manufacturing and printing the uncolored vest bags made of HDPE, LDPE roll film. It adopts PLC control, double step motor fixed length and the liquid crystal touch screen actual display to finish the feeding, sealing, cutting, punching holes and transporting only in one process. It is of high degree of automation and good economic result.

Main Technical Variables:

Model
DFHQ-350*2
DFHQ-450*2
Max. Bag-making width
300mm*2
400mm*2
Max.Bag-making length
600mm
600mm
Bag-making thickness
0.015-0.035mm
0.015-0.035mm
Bag-making speed
140-200pcs/min*2
140-200pcs/min*2
Air pressure
5kg/cm2
5kg/cm2
Total Power
7kw
9kw
Weight of machine
1400kg
1600kg
Overall dimensions
6000*1400*1600mm
6000*1600*1600mm
