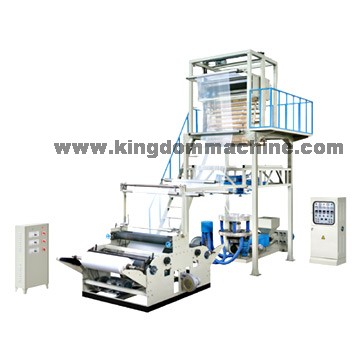

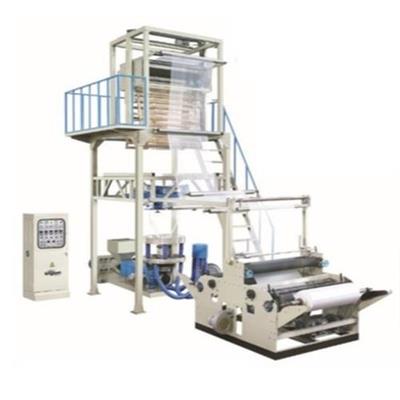

rotary die head blown film machine





It is used for blowing high-low pressure polyethylene, which has been widely used for producing laminating film, packing film, agricultural covering film, bag or film for textile and clothing and other packing material. The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%. The screw and material barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is, big or small, it can achieve the best effect of cooling.
Main Technical Variables:
Model
SJ-B50
SJ-B55
SJ-B60
SJ-B65-1
Screw Diameter
50mm
55mm
60mm
65mm
Screw Ratio(L/D)
28:1
28:1
28:1
28:1
Screw Speed
10-100r/min
10-100r/min
10-100r/min
10-100r/min
Power of Main Motor Max Output
11Kw
35kg/h
15Kw
50kg/h
15-18.5Kw 65kg/h
18.5-22Kw 80kg/h
Max.Folding Width of Film
600mm
800mm
1000mm
1200mm
Single-sided Thickness of Film
0.01-0.10mm
0.01-0.10mm
0.01-0.10mm
0.01-0.10mm
Total Power
22Kw
26Kw
30Kw
36Kw
Weight of Machine
2T
2.3T
2.6T
3T
Overall Dimensions
4*1.8*3.6m
4.2*2*4m
4.6*2.3* 4.2m
4.8*2.5*4.5m

OPTIONAL EQUIPMENT:
1)  AUTO LOADER
2)  EMBOSSING ROLLER
3)  FILM SURFACE TREATER
4)   AIR COMPRESSOR
5)  MECHANICS SCREEN CHANGER
6)  UP AND DOWN
7)  DOUBLE-LIP AIR RING
8) AIR SHAFT
