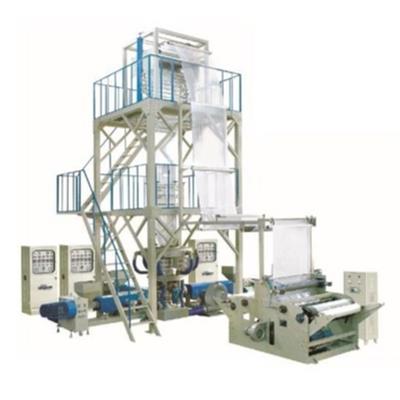

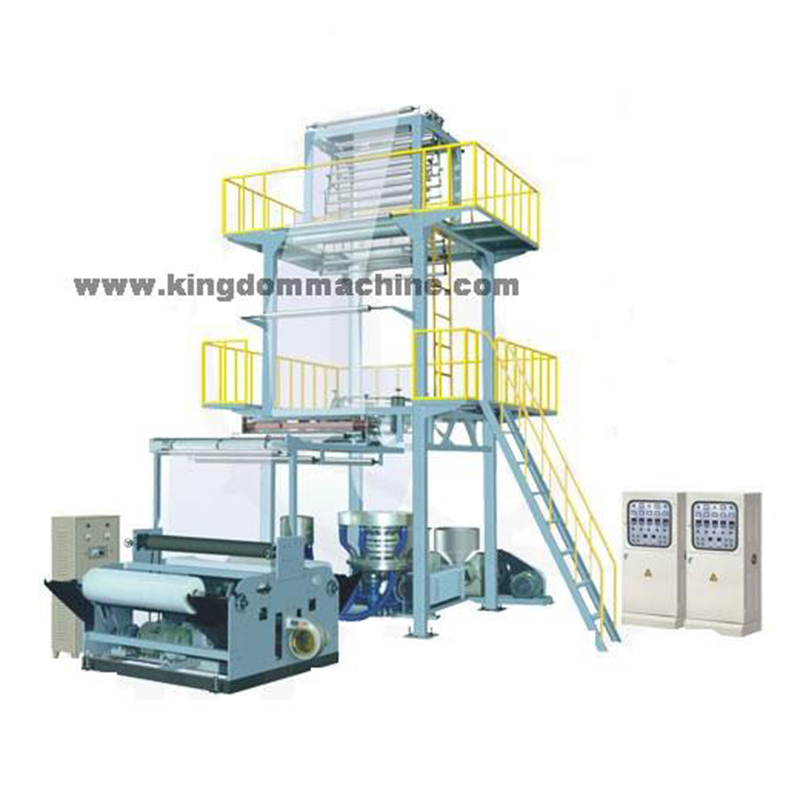

three layer blown film machine






Three layers film blowing machine Characteristics




1.Die head is layer type spiral mandrel, continuous 360 rotation.
2.Screen  pack changer design is   reliable,  safe in operation and change the fitter screen easier.
3.Various functional parts may be installed  to  the  lies.,such as length counting device, vertical cutting device,  cooling  water  row  pipe, film
spreading roller, scrap collecting device.

Use:
Three layers film blowing machine are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home.
It is optimum designed on the trounds  of  preference  of analogous lines in foreign and home. The lines can be blown cotinuous 800/1500mm in  fold  width 0.08mm
in the thickness packaging films, film has good insulation, for instance holding temperature,  antihumid, antibreeze, anti-rain,anti-rost, insulation oxygen,oil
resistive, and so used for light and heavy-duty packaging,  for example fresh fruits, meat-feeding,salt  vegetables, fresh milk, drink.

Main Technical Variables:

Model
3SJ-G1000
3SJ-G1200
3SJ-G1500
Screw Diameter
55mm*2 60mm*1
60mm*2  65mm*1
65mm*2  70mm*1
Screw Ratio L/D
28:1
28:1
28:1
Screw Speed
15-150r/min
15-150r/min
15-150r/min
Main Motor Power
15Kw*2 18.5Kw*1
18.5Kw*2 22Kw*1
22Kw*2 30Kw*1
Extrusion Output(Single)
50kg/h
80kg/h
100kg/h
Range of Die
150mm*2 200mm*1
200mm*2 250mm*1
250mm*2 300mm*1
Single-sided Thickness of Film
0.01-0.10mm
0.01-0.10mm
0.01-0.10mm
Max. Folding Width of Film
1000mm
1200mm
1500mm
Electric Total Capacity
76Kw
88Kw
102Kw
Overall Dimension
6.6*4.1*5m
6.8*4.3*6m
7*4.8*7.5m
Weight
4T
5T
6T
