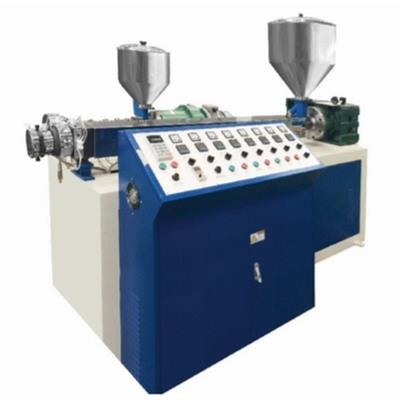

two colors drinking straw making machine








TECHNICAL FEATURE
1.       The extrusion die can be special designed and easy exchanged to produce pipe and shaping stuff,
2.       Water bath in stainless steel can be adjusted in three planes ,
3.       The haul-off unit can be belt.
4.       Fitted with single rotary cutter.
5.       Conveyor device(you may select if you want)
SPECIFICATIONS

Model
KD-12
Parameter of main screw
φ50mm(diameter) ×2
Parameter of sub- screw
0
Capability
30~50Kg/h
Power
supply
Main motor
11kW×2    380v    50Hz (VFD)
Haul-off motor
0.37kW×2(VFD)
Cutting motor
0.75kW×1(VFD)
Temperature controller
11zone
Length of cooling container
3400mm/6400mm
Specifications
diameter:φ3~12mm   thickness:0.05~1mm
Machine weight
2000KG
Dimension
1600mm(W)×9000mm(L)
Other specifications are customizable






DESCRIPTION
Model KD-12 is a tube extrusion line, composed of two-color co-extruder and die, size setting and water cooling unit, haul-off unit, rotary cutter unit, air compressor, The machine can produce all kinds size of two-color drinking straw,spiral strip straw, all the machine’s controls base with the control elements ergonomically adapted to permit easy operation.
